Breve descrizione
Tipo: Cuscinetto a sfere a contatto obliquo a una corona
Modello: 4178-3 TN RICH
Dimensioni: 41 x 78 x 17.5 mm
Brand: RICH
Origine: Cina

4178-3 TN RICH 41x78x17,5

4178-3 TN RICH 41x78x17,5
Breve descrizione
Tipo: Cuscinetto a sfere a contatto obliquo a una corona
Modello: 4178-3 TN RICH
Dimensioni: 41 x 78 x 17.5 mm
Brand: RICH
Origine: Cina
20,44 €
Tasse escluse
Quantità
🏠 Il prodotto è nel nostro magazzino e arriverà al tuo indirizzo di spedizione entro 10–12 giorni lavorativi.

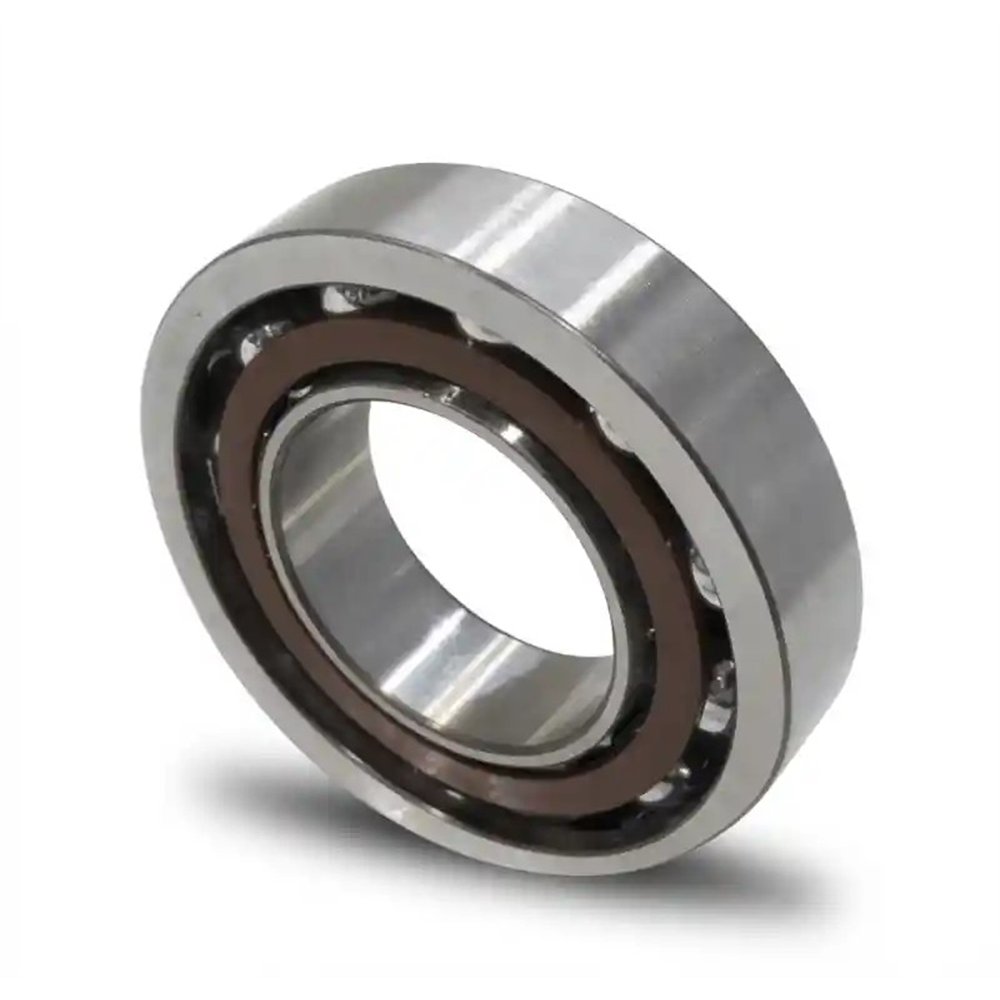

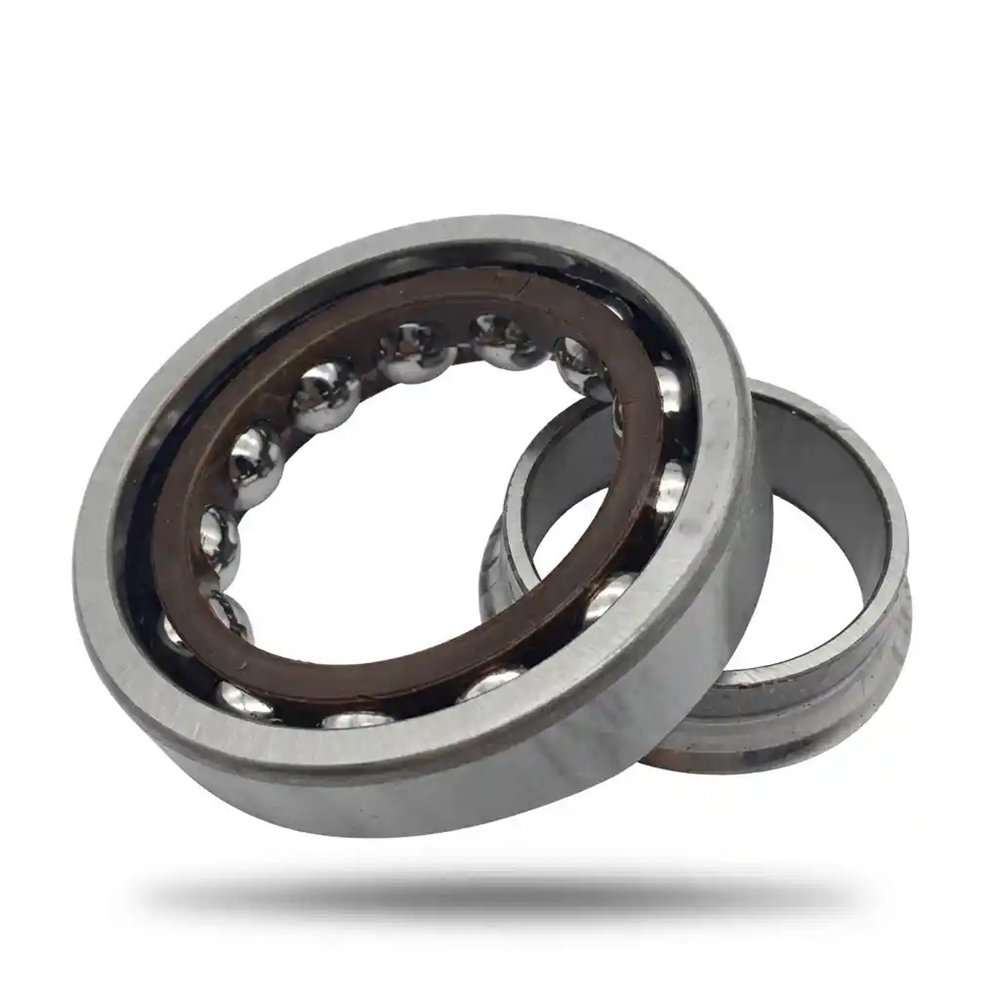

4178-3 TN RICH - Single Row Angular-Contact Ball Bearing - 41 x 78 x 17.5 mm

OE / Interchange References:

  • KOYO: SAC 4178-3 SH2

Technical Specifications:

  • Type: Single row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: 4178-3 TN
  • Dimensions: 41 x 78 x 17.5 mm
  • Bore Diameter (d): 41 mm
  • Outside Diameter (D): 78 mm
  • Overall Width (T): 17.5 mm
  • Inner Ring Width: 17.5 mm
  • Cage: Polyamide
  • Weight: 0.298 kg
  • Country of Origin: China

Construction Details:

  • Single row angular-contact ball bearing designed to accommodate combined radial and axial loads.
  • Fitted with a polyamide cage for smooth guidance of the rolling elements and optimized operational performance.
  • Features metric dimensions corresponding to 41 mm bore diameter (d), 78 mm outside diameter (D), and 17.5 mm overall width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

SAC41783SH2

Scheda tecnica

Inner Diameter
41
Outer Diameter
78
Width
17,5/17,5
Weight
0,298
Ball Rows
Single Row
Cage
Polyamide Cage
Product Category
Single Row Angular-Contact Ball Bearing
