RNA 6903-2RS RICH 22x30x23

RNA 6903-2RS RICH 22x30x23
Breve descrizione
4,68 €
Tasse escluse
Quantità
🏠 Il prodotto è nel nostro magazzino e arriverà al tuo indirizzo di spedizione entro 10–12 giorni lavorativi.

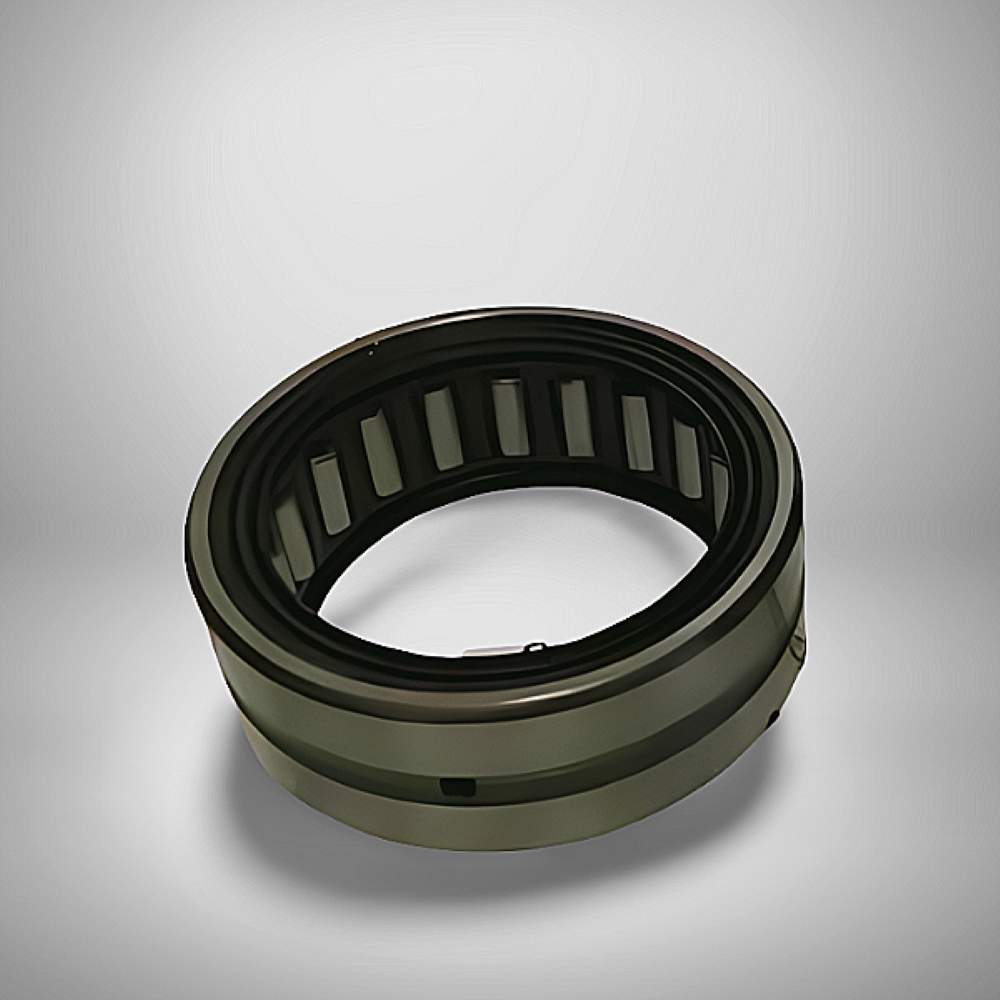

RNA 6903-2RS RICH - Needle Roller Bearing - 22 x 30 x 23 mm

Technical Specifications:

  • Type: Needle roller bearing without inner ring
  • Brand: RICH
  • Model Designation: RNA 6903-2RS
  • Inner Diameter (d): 22 mm
  • Outer Diameter (D): 30 mm
  • Width (B): 23 mm
  • Cage Material: Steel
  • Sealing: Double-sided rubber contact seals (2RS)
  • Weight: 0.051 kg
  • Country of Origin: China

Construction Details:

  • Components: Steel outer ring with ground internal raceway and retention flanges, steel internal retainer cage, a complement of cylindrical needle rollers, and double-sided rubber contact seals.
  • Configuration: Radial needle roller layout without an inner ring. The mating shaft is utilized as the direct internal raceway track. Sealed execution featuring a 23 mm width profile configuration equipped with integrated double-sided rubber contact seals (2RS) to protect the internal roller paths from dust and moisture ingress while retaining internal lubrication.
  • Rolling Elements: Needle roller complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

RNA6903-2RS

Scheda tecnica

Inner Diameter
22
Outer Diameter
30
Width
23
Weight
0,04
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Product Category
Needle Roller Bearing
